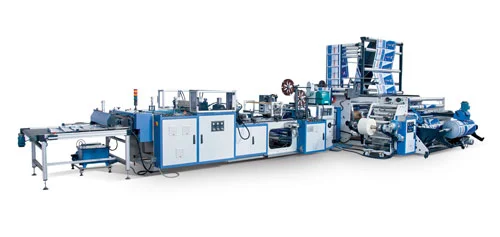

NEW (made-to-order) Gur-is Courier Bag Making Machine (with or without pocket)

Courier Bag Making Machine( with or without pocket)

» Moonstep Technology System, High Performance Courier Bag Making Machine

» German Made Multi Color Touch Screen-Industrial PC, 4 pcs. Servo Motors and Servo Drive System

» There is one photocell. Ability to produce printed bags and none-printed bags

» Ability to work with OPP, PP, CPP, High Density Poly Ethilene (HDPE) , Low Density Poly Ethilene (LDPE) and Recycled Polyethylene materials

» The machine would stop and give information on the screen when `Roll is empty`, `The print mark is not right position`

» The pneumatic ballerina system with motor and invertor in order to unwind the roll

» Servo motor controlled synchronous roller system

» The belt motor speed is also adjusted via invertor

» The rotating lower jaw is included to the machine as standard

TY-900 CR / TY-1100 CR / TY-1300 CR / TY-900 CRP / TY-1100 CRP
Max. Bag Length (mm) / 800 / 1000 / 1200 / 800 / 1000
Bag Width ( mm ) / 100-800 / 100-800 / 100-800 / 100-800 / 100-800
Thickness of Film ( mm ) / 0.020-0.100 / 0.020-0.100 / 0.020-0.100 / 0.020-0.100 / 0.020-0.100
Production Speed ( Max.cycles/minute ) / 250 / 250 / 220 / 250 / 250
Servo Motor ( pieces ) / 4 / 4 / 4 / 4 / 4
Photocell ( piece ) / 1 / 1 / 1 / 1 / 1
Total Air Consumption ( liters/minute ) / 300 / 300 / 300 / 300 / 300
Total Installed Power ( kW ) / 15 / 15 / 15 / 20 / 20
Supply Voltage / 380 V AC / 380 V AC / 380 V AC / 380 V AC / 380 V AC
