Introducing the new Gur-is TY-750 HSL bag-making machine—ideal for printed and non-printed HDPE and LDPE bags. Features include multi-servo motor control, adjustable bag size, and 160 pieces/min speed with ultimate precision. Suitable for various bag dimensions.

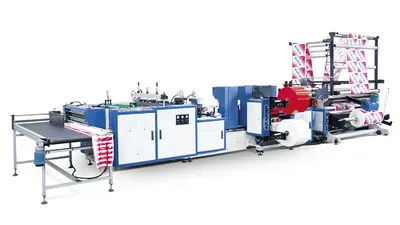

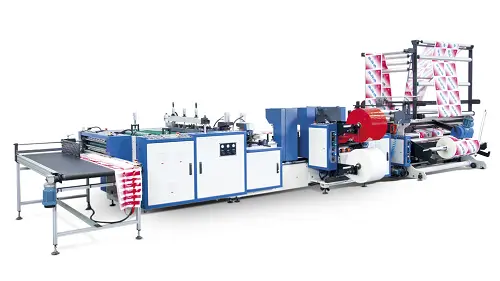

Gur-is High Speed, Servo Motor System, Soft Loop Handle Bag Making Machine
» High Speed, Servo Motor System Soft Loop Handle Bag Making Machine
» Multi Servo Motor and Invertor Control System
» Bag length, set number can be changed via screen. Bag counting, machine speed can be seen on the screen
» There is one photocell. Ability to produce printed bags and none-printed bags
» Ability to work with High Density Poly Ethylene (HDPE) , Low Density Poly Ethylene (LDPE) materials.
» The machine would stop and give information on the screen when `Roll is empty`, `The print mark is not in right position`
» The pneumatic ballerina system with motor and invertor in order to unwind the roll
» The synchronous roller system
» The belt motor speed is adjusted via invertor
» The rotating lower jaw is included to the machine as standard
» Cut bags are arranged in a row on conveyor
TY-750 HSL
Bag Width (mm) / 250-750
Bag Length (mm) / 250-750
Thickness of Film(mm) / 0,040-0,090
Production Speed (pieces/min) / 160
Soft Loop / 160
Total Air Consumption(liter/min) / 300
Total Installed Power / 20
