NEW (made-to-order) Uteco Topaz Flexo Printer

Made-to-order Topaz Flexo Printer

Gearless flexo printing at the most affordable cost.

Uteco’s entry level machine for gearless flexographic printing: no compromise, immediate return on investment.

- Flexographic printing
- Short, medium runs
- Film, plastic, paper
- Flexible packaging

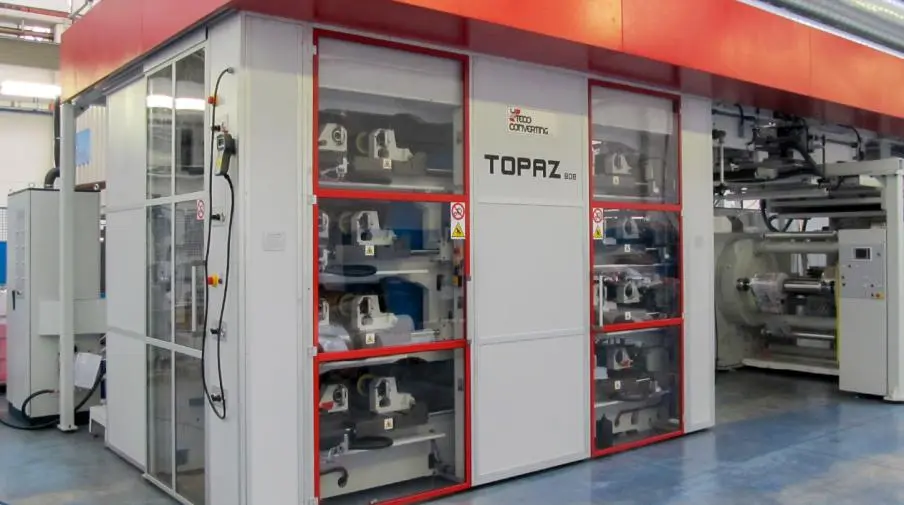

Topaz is the gearless flexographic printing machine, with 6 or 8 colors, with in-machine sleeve change for both the anilox cylinders and the printing sleeve cylinder.

The sleeve change is quick and easy and the automatic positioning of the printing units is guaranteed by stepper motors with latest generation CNC control.

The ventilation on the drying tunnel, located on the upper tunnel, is very silent: a soundproof cabin encloses the supply and exhaust fans.

Topaz's design is modular and can also be supplied with customized configurations that integrate the features of the standard machine.
Mechanical speed (m/min): 300
Min. print repeat (mm): 290 / 450
Max. print repeat (mm): 850
Print widths (mm): 600 / 1600
Material widths (mm): 650 / 1650
Inks: water based - solvent based, UV/EB
Colors: 8
Tension range (dan): 2 + 30
Reels diameter (mm): 1000 - 1300 - 1500
Dimensions (m): 14 x 5 x 4,7
