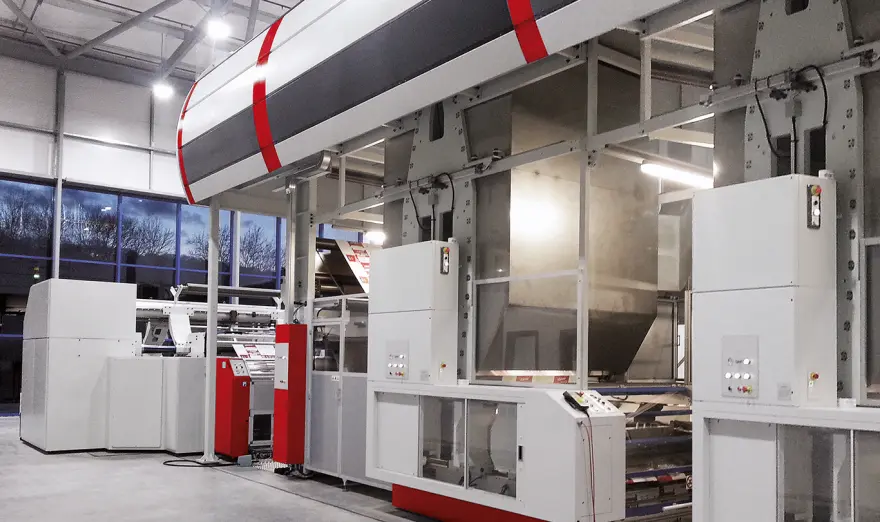

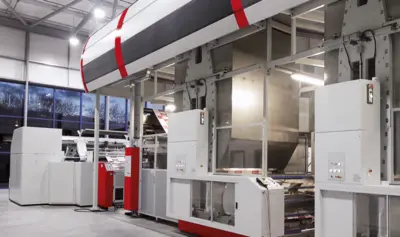

NEW (made-to-order) Uteco Diamond SIL Flexo Printer

Made-to-order Diamond SIL Flexo Printer

The best solution for special printing applications
Very high printing performances for special applications, thanks to its ergonomic design and the patented Uteco Direct Drive® technology.

- In-line flexographic printing
- Medium and long runs
- Film, cardboard
- Food & liquid packaging

Diamond SIL is the special Uteco machine suitable for the main applications in the liquid packaging sector, for printing on cardboard and on flexible film for continuous or in-register printing or coating.

Its configuration includes up to twelve color units and can be customized with all types of inks: water-based, solvent, EB, UV and UVLed. You can also choose among different types and lengths of hoods for the drying process, which is highly efficient with low energy consumption costs.

It has an ergonomic design that makes it easy to use: all units are located at floor level, there are no ladders to climb or lifting platforms. The anilox sleeve change and the cliché sleeve change are quick and do not require the operator to use additional equipment.
Mechanical speed (m/min): 600
Min. print repeat (mm): 360 / 500
Max. print repeat (mm): 1250
Print widths (mm): 1000 / 1800
Material widths (mm): 1050 / 1850
Inks: water based - solvent based, UV/EB
Tension range (dan): 4 ÷ 90
Reels diameter (mm): 800 - 1000 - 1300
