NEW (made-to-order) Uteco Quarz Flexo Printer

Made-to-order Quarz Flexo Printer

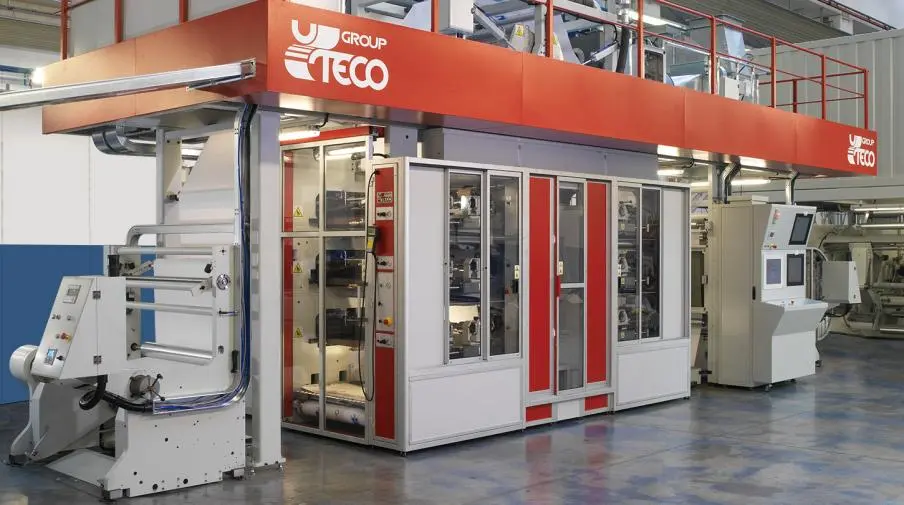

The Uteco Stack Type flexo is precise, flexible, reliable
The Uteco Stack Type printing machine designed for in-line or reel-to-reel applications, with a solid and reliable structure suitable for large printing widths and runs.

- Flexographic printing
- Short, medium, long runs
- Paper, cardboard
- Food & liquid packaging, labels and adhesive labels

Quarz is the flexo printing machine mainly intended for printing on paper, cardboard, tubulars and plastic films for food packaging, as well as for industrial and personal care product packaging and labels. The solid structure allows to manage even large printing repeats and print widths.

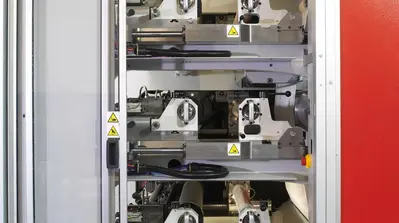

The machine is characterized by the sleeve change both on the anilox sleeve cylinder and on the printing sleeve cylinder. Upon request it is possible to install servomotors to position the inking rollers.

In the gearless solution all the counterpressure cylinders are driven by servomotors, connected together by the Uteco electric axis.
Mechanical speed (m/min): 300
Min. print repeat (mm): 300 / 440
Max. print repeat (mm): 1300
Print widths (mm): 600 / 1600
Material widths (mm): 650 / 1650
Inks: water based, solvent based, UV/EB
Colors: 6
Tension range (dan): 2 + 50
Reel diameter (mm): 800 - 1000 - 1300
Dimensions (m): 13 x 5 x 4,3
