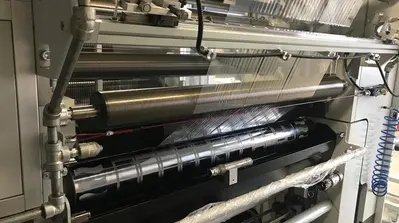

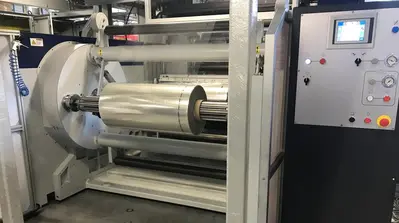

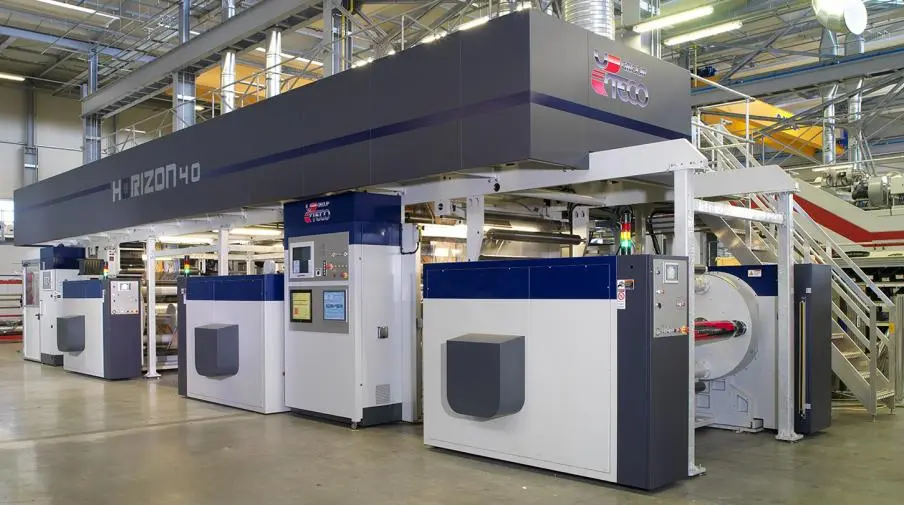

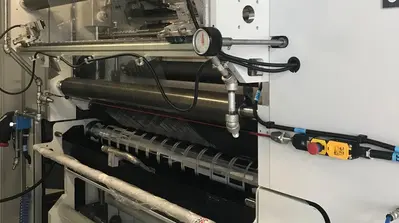

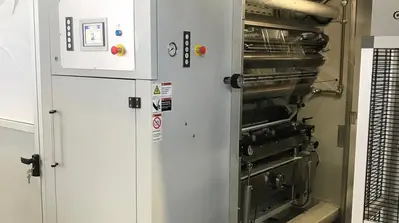

NEW (made-to-order) Uteco Horizon 4.0 Coater and Laminator

Made-to-order Horizon 4.0 Coater and Laminator

Flexible and tailor-made coating and laminating technology
The multi-process coater and laminator for producing multilayer laminates, with a highly flexible design that meets all diverse demands.

- Laminating and coating
- Short, medium and large runs
- Film
- Flexible packaging, food & liquid packaging

Combo laminating machine that meets the demands of technical flexibility concerning the new packaging films technologies. The machine is predisposed for duplex-triplex lamination with different type of coating technologies, such as, rotogravure, indirect gravure, flexo and semiflexo, and it is specifically designed for the production of multilayer laminates both with wet and dry lamination technologies.

The standard configuration consists in a multi-process coating unit for different packing technologies and an automatic washing system. The machines can be integrated with optional features such as the corona treatment for the primary and secondary film system, in-line units for different types of coating and lamination, and the thickness control of the adhesive. If requested, the Uteco-patented systems for job changes are available.
Max/min material width (mm): 750 ÷ 1550
Max coating width (mm): 1500
Min coating width (mm): 730
Max coating speed (m/min): 500
Unwid./rewin. max diameter (mm): 1200
Unwinder tension (dan): 2 ÷ 40
Rewinder tension (dan): 4 ÷ 50
Max reel weight (kg): 1500
Min. size (m): 17.3 x 5.2 x 6.6
