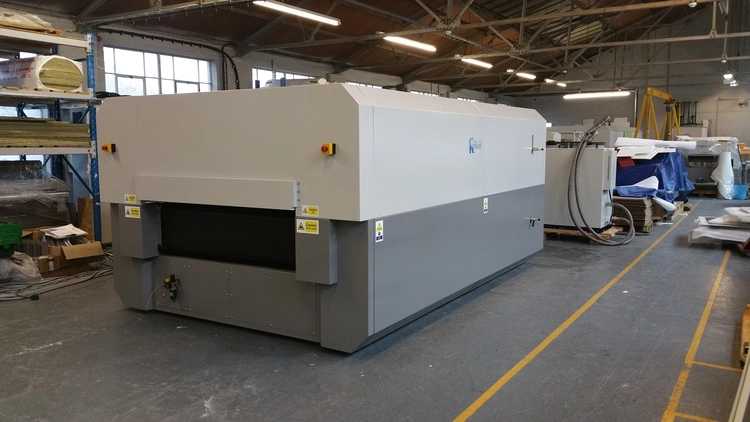

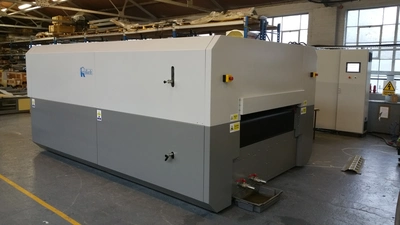

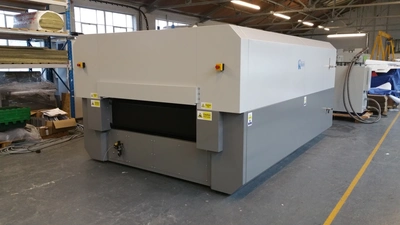

2016 Reliant Machinery HPL160 Laminator

Reliant Powerbond HPL160 (63”) Laminator (Refurbished)

- 1620mm (63.0”) belt width
- 2600mm of heating

o 32 heating modules (16 upper belt/16 lower belt)

o Eighteen (18) individual temperature zones settings via PLC and HMI screen

- Six (6) heating zones lengthwise (3-upper belt / 3-lower belt)

o Three (3) zones across the width with independent L/R edge control

o Central zone width -1210mm, Outer edge zone widths - 205mm each

o Heater power – 4.0 kW per module, total heating: 128.0 kW

o Independent PID micro-processor temperature controls on all heating zones

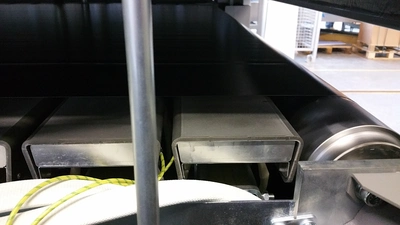

· 1900mm internal cooling tunnel

o 26 modules (13-upper/13-lower) (Chiller quoted separately)

- Floating upper modules for consistent contact & optimum heating / cooling transfer

· Tunnel height adjustment from 0 – 150mm (6.0”) in 0.1 mm increments, via HMI

- “Synchronized” belt drives for upper and lower tunnel

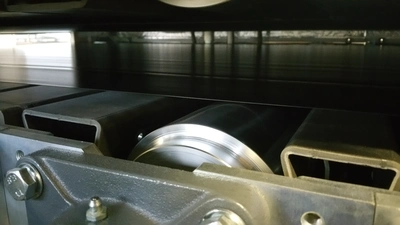

- Steel pressure rollers – 6” diameter
- Independent pressure roller height adjustment from 0- 25mm in 0.1 mm increments
- Pneumatic upper pressure roller control (0-8 bar) via HMI

· Single-ply conveyor belts, PTFE coated with scarf joined splice

· Top/Bottom tunnel entry rollers aligned vertically – no inlet conveyor

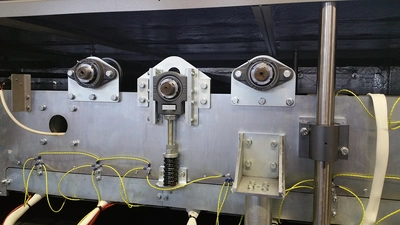

· Reliant Synchro-Track belt alignment system with linear actuators

· Independent belt tensioning system for upper and lower belts

· Split side panel system for fast & easy belt changes (all hardware included)

· Felt wiper cleaning bars located on top & bottom belts

- Running speed range: 0.5-10m/minute
- Maximum temperature: 230ºC (446ºF)

· Air pressure: 0-8 Bar, 6mm push-in fitting.

· Coolant connections: Two (2) - 1½” BSP male hydraulic fittings

· Electrical: 480 volts/3phase/60Hz power

Full load amperage: TBD

· Safety E-Stops: Four (4) total (2-entrance & 2-exit (left/right)

· Freestanding control cabinet housing OMRON PLC and electrical systems including:

· Central control / recipe memory setting of line functions to include independent settings for:

ü All heating zones

ü All pressure zones

ü Tunnel height and pressure roller height adjustments

ü Touch screen color display

ü 99 Operating program memory function

ü Reporting and history functions

ü Visual fault warning system

This unit has been completely refurbished by the OEM

a warranty is available. (Details on the attached)
